LOJO ESS231H

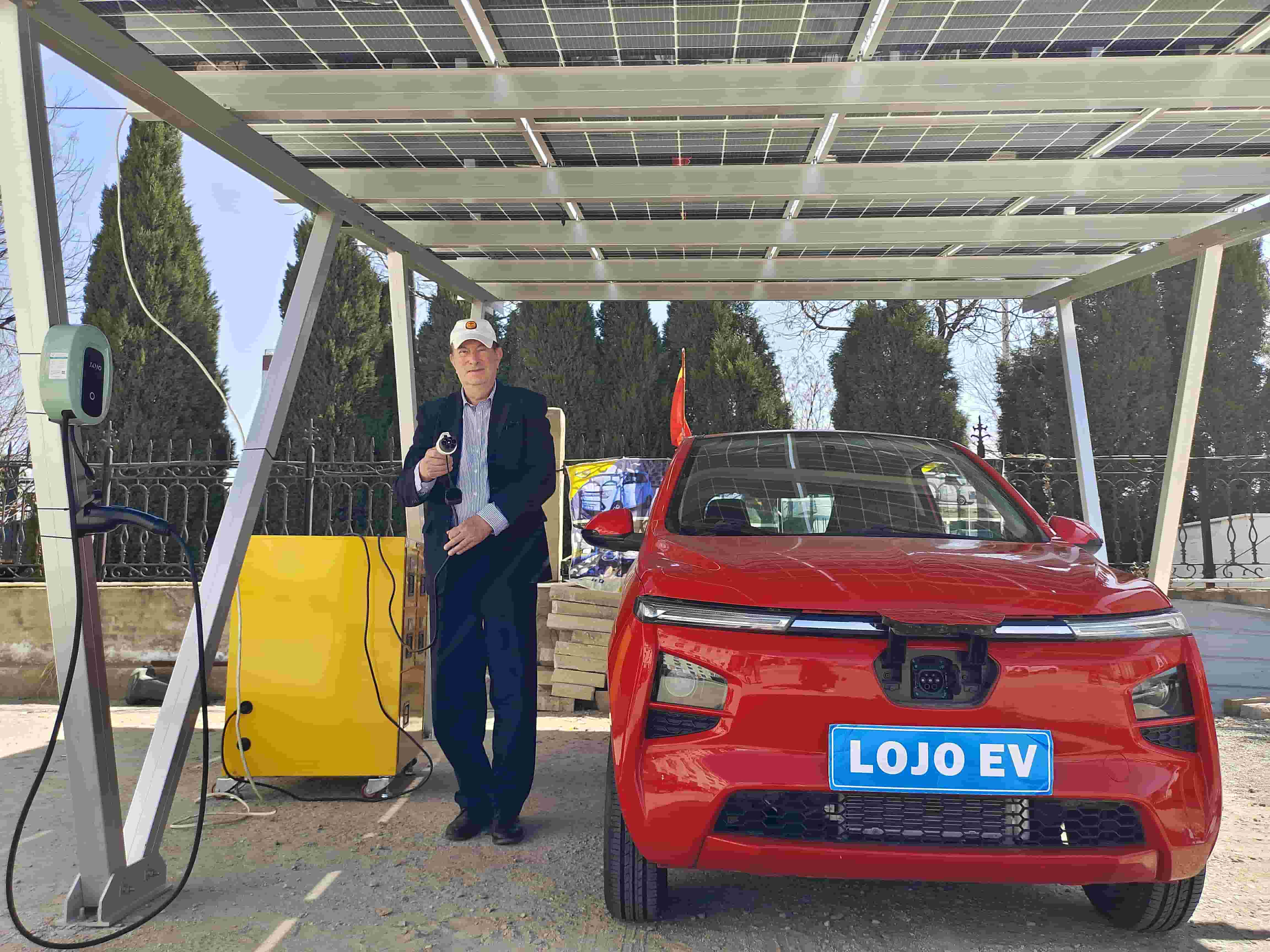

Solar panel sustainable +EES(Energy Storage System)
Solar car,Solar shelter, Cabinet, Removable battery

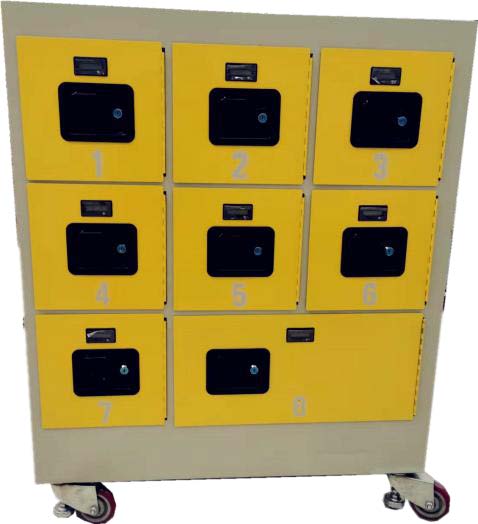

Model: ET7250-08I
Total cabinets: 8
Size cabinet: 1100*900*680mm
Single bin size: 253*240*512mm
Input voltage: AC180-240V/50Hz
Single chamber charger output: DC84V 8A Max input current of the whole cabinet: 35A
Leakage protection: 63A
Operating temperature: 0~50¡æ
Applicable battery: NCM Lithium battery 72V 30-60Ah
Battery SPEC:
Rated Power:5KW
Battery voltage:72V
Nominal Output Voltage:230AC±10%
Max PV Charge Current£º60A
Max Grid charging Current:25A
Max PV Array Power£º5500W
MPPT Range Operating Voltage£º100~150VDC
|
